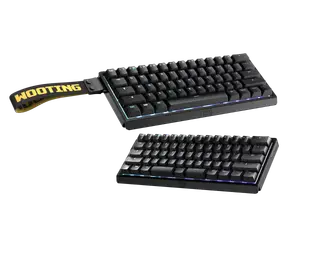

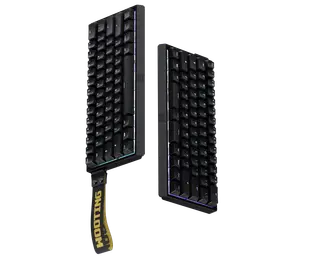

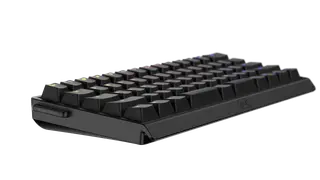

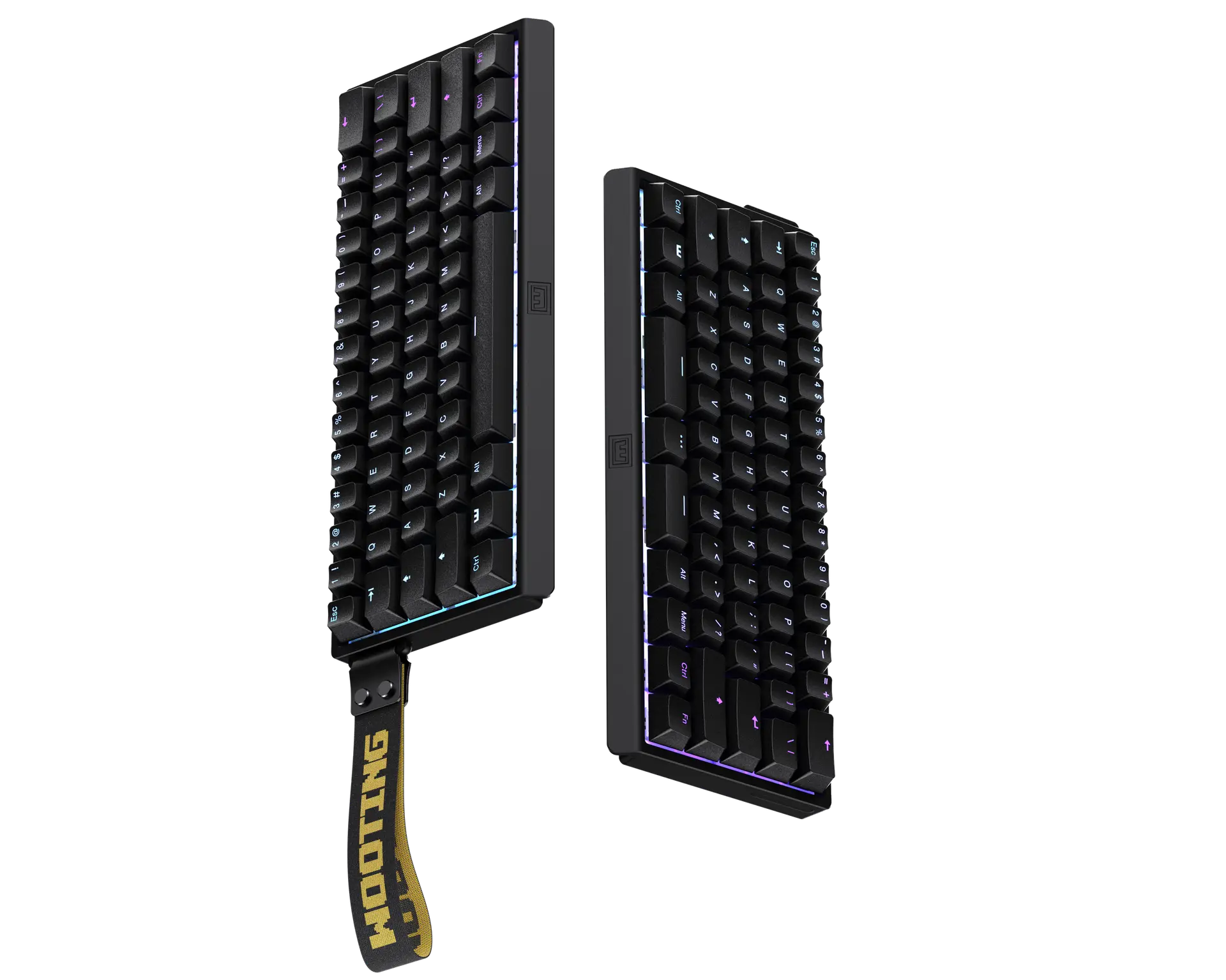

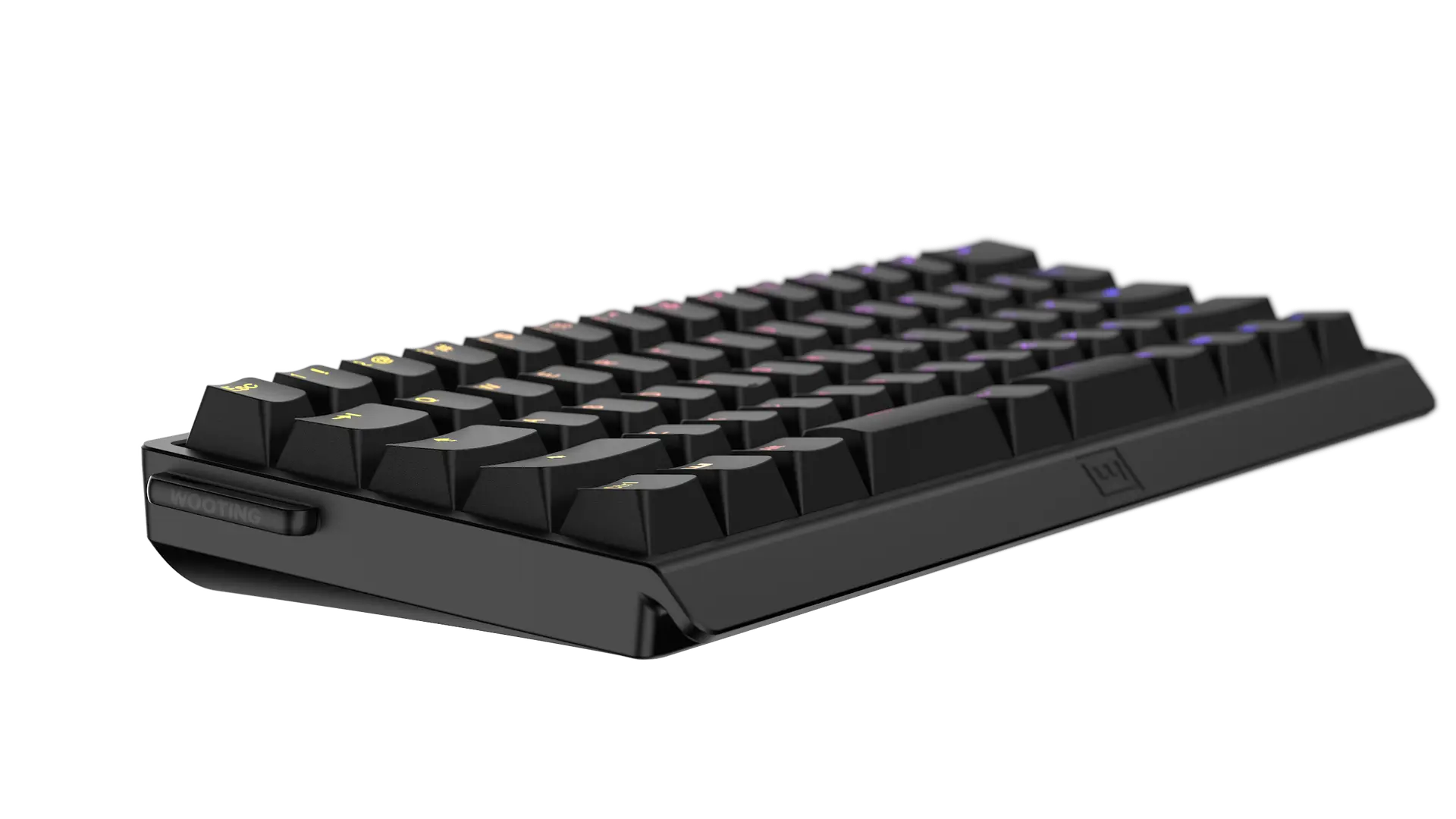

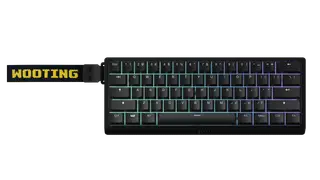

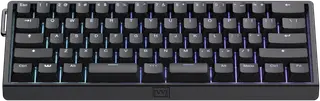

Wooting 60HE V2 Keyboard

The Wooting 60HE V2 is the second generation of the board that started analog gaming keyboards: Lekker Tikken magnetic switches, 8K polling, and a case in ABS or aluminium.

Specification

Layout 60%, 61 or 63 keys (split spacebar option)

Switches Lekker Tikken Medium linear magnetic; hot-swap with magnetic switches

Actuation 0.1 - 4.0 mm adjustable, Rapid Trigger

Polling rate Up to 8000 Hz

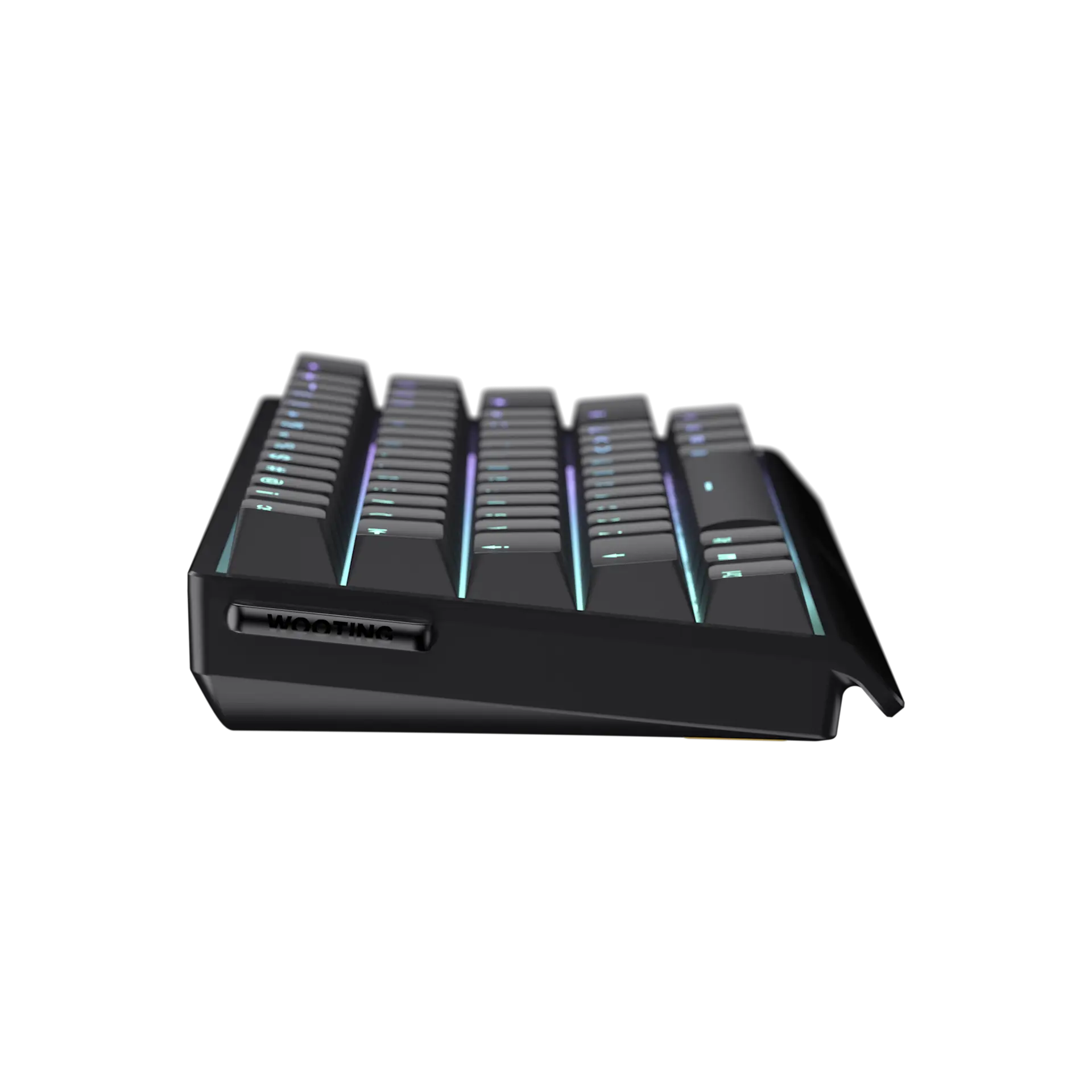

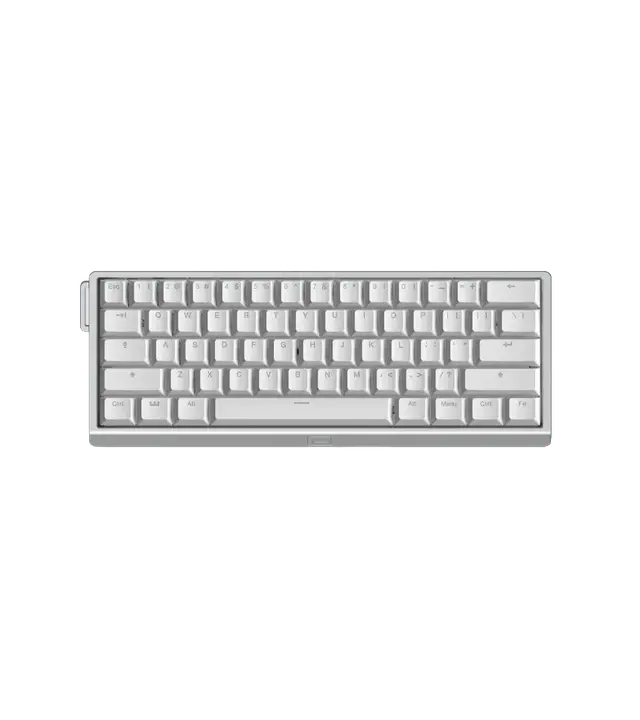

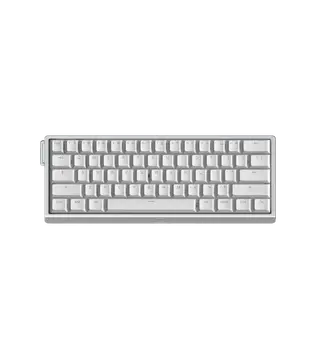

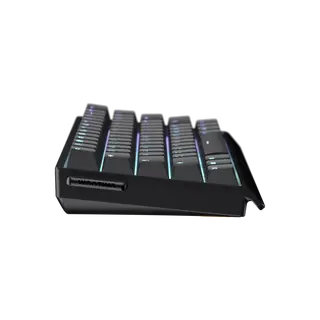

Case ABS Black, Black Aluminium, Bright Silver Aluminium

Plate FR4

Mount Silicone friction-fit pad, HD Poron sandwich

Keycaps PBT double-shot, transparent legends

Stabilisers Screw-in

PCB GH60 60%

Cable 2 m USB-C to C, braided

Software Wootility - Windows, macOS, Linux

Analog

A Lekker switch reports the full travel of the key, so beyond Rapid Trigger it works as an analogue input: WASD becomes a gamepad stick, and a key can do one thing at half press and another at the bottom.

Spacebar

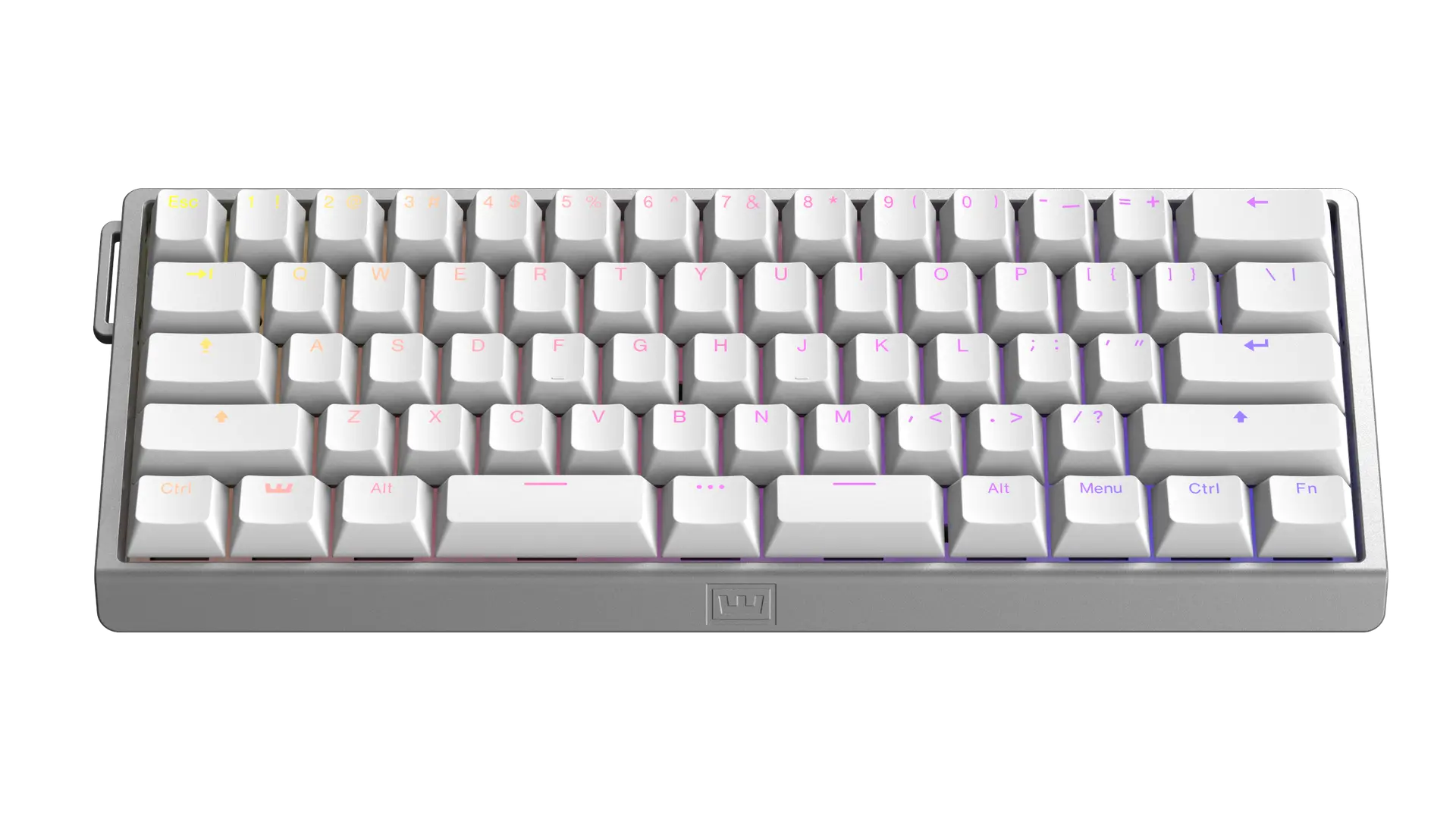

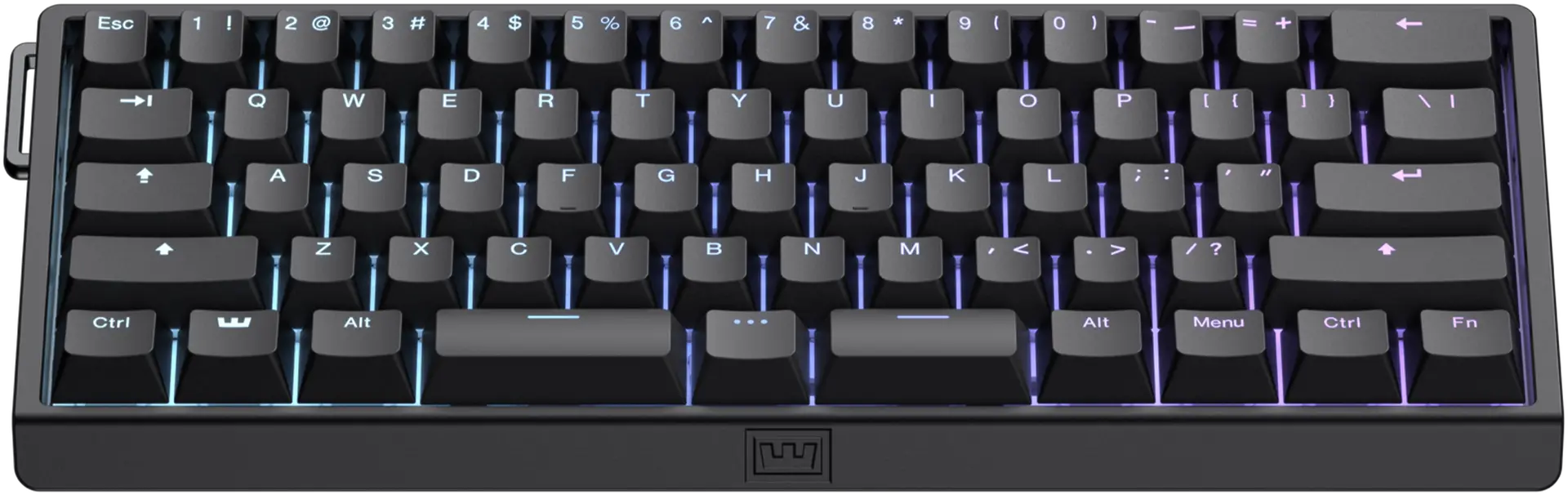

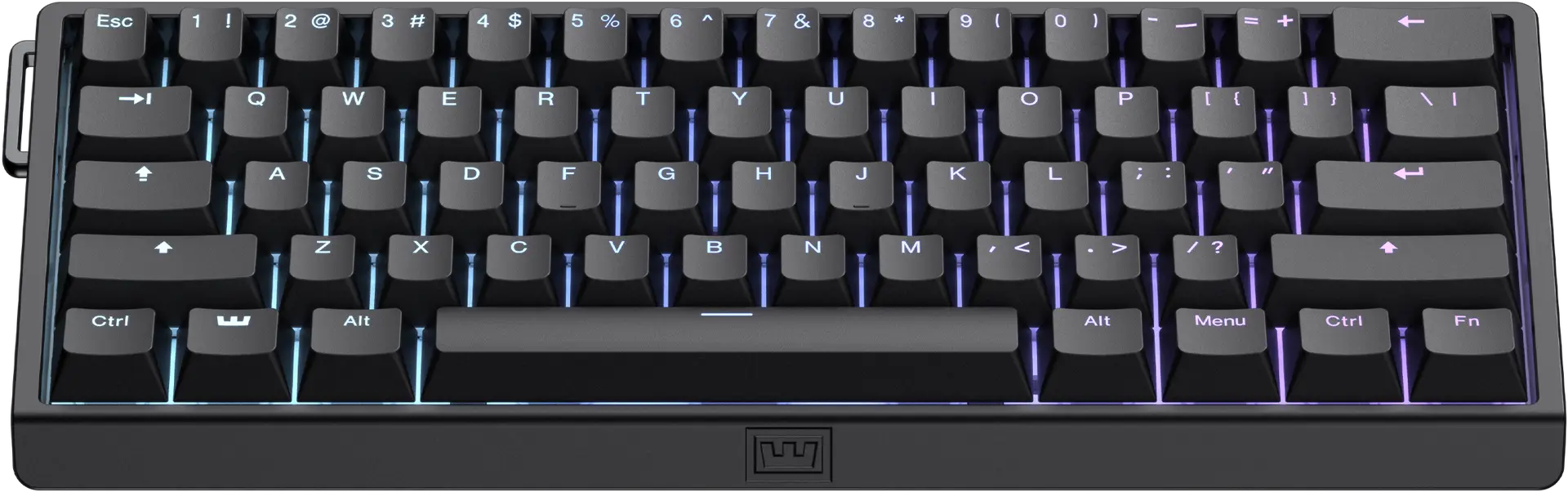

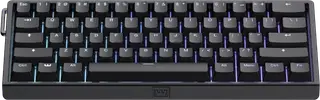

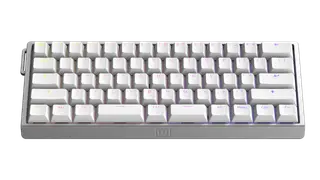

Every colour comes with the normal spacebar; the split spacebar option swaps in a three-piece bar with two extra keys.
