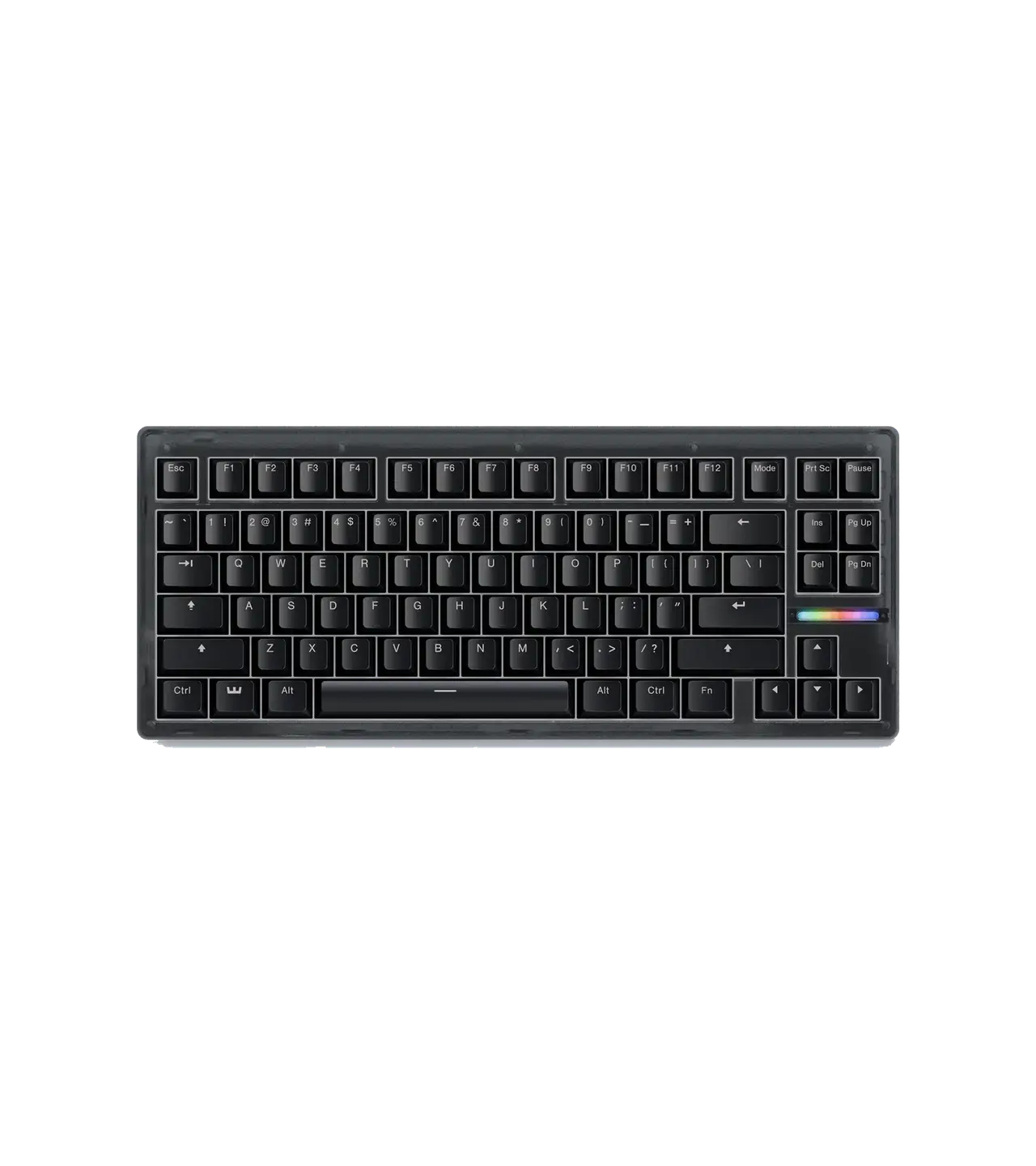

Wooting 80HE

The Wooting 80HE is the TKL Wooting: Lekker V2 L60 magnetic switches on a silicone gasket mount, true 8K polling, and Wootility on Windows, macOS and Linux.

Specification

Layout 80%, TKL

Switches Gateron × Wooting Lekker V2 L60 linear magnetic; hot-swap with Lekker and Gateron KS-20

Actuation 0.1 - 4.0 mm adjustable, Rapid Trigger

Polling rate True 8000 Hz

Case PCR ABS (Ghost) or zinc alloy; top and bottom gasket mount

Plate White polycarbonate

Dampening Silicone sandwich pad, EPDM foam

Keycaps PBT double-shot, backlit

Stabilisers Screw-in

Cable 2 m USB-C to C, braided

Software Wootility, firmware updater built in

Analog

A Lekker switch reports the full travel of the key, so beyond Rapid Trigger it works as an analogue input: WASD becomes a gamepad stick, and a key can do one thing at half press and another at the bottom.

Package content

Keyboard 80HE

Switches 3 spare L60, 1 spare L45

Cable USB-C to C, plus C-to-A dongle

Feet 2 × 6°, 2 × 10°

Keycaps 7 extra: Home, End, Scrl Lk, A1, A2, A3, Wooting logo

Tools Switch and keycap puller, 4 spare M2×5 screws

Extras Postcard
